    Multifunctional 0.75kw 3500mm Overlay Welding Equipment

    Cladding Overlay Welding Machine


    1. Production description

    JH-150 surfacing welding equipment uses Mitsubishi TECOPLC system to control welding parameters, surfacing time, touch screen operation settings, etc. The use of dedicated power supply for surfacing can ensure stable output characteristics.
    It is our new generation of multifunctional, high-performance automatic welding equipment. The surfacing equipment has the advantages of stable covering function, simple operation and convenient installation. The hardfacing layer can form a metallurgical bond with the substrate. This automatic welding equipment can also be used to rebuild parts according to OEM specifications, or to extend the service life of parts by enhancing wear resistance, corrosion resistance, abrasion resistance, heat resistance and impact resistance. The surfacing machine can also be selectively used in critical wear areas on new parts, or as a means to restore worn parts to their original dimensions.


    2. Specification

    Product nameCladding Overlay Welding Machine
    Effective transverse welding stroke1500mm; Can be customized
    Effective longitudinal welding stroke3500mm; Can be customized
    Welding speed100-1000mm /min
    Gantry gauge3000mm
    Cross slide trim trip (Electric)60mm
    Welding torch up and down stroke (Electric)260mm
    Swing speed0-2400mm/min
    Longitudinal servo motor power0.75kw
    Horizontal servo motor power0.75kw
    Power-driven planker speed up/down300mm/min

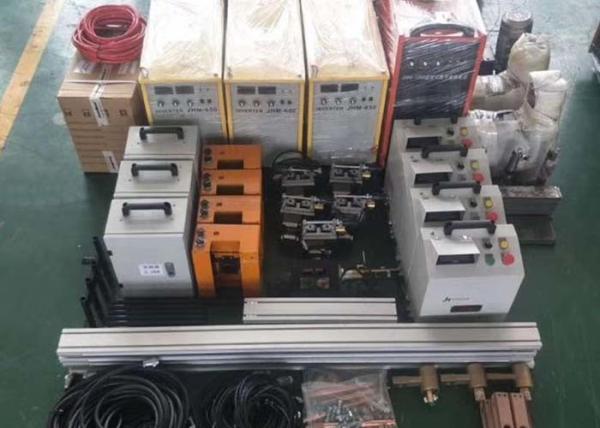

    3. Pictures

    Adjustable 0.75kw 3000mm Overlay Cladder Machine 1
