    6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-380
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Units+Per Month
    Delivery Time : 15-60 days
    • Product Details
    • Company Profile

    6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine

    Pipe Harfacing Machine, Pipe Inner Hardfacing Machine, Pipe Inner Surface Overlay Welding Machine

    1. Machine Introduction

    JH-380 Inwall Pipe Automatic Welding Machine is a new generation of the automatic overlay weldingmachine developed by our company, which is featured with a high level of automation, designs conforming to the manual machine operation and simple operation.JH-380 is functioned by the welding parameter memory storage, wireless remote control, automatic location finding, circulating water cooling control with variable frequency, abnormal information alarm and so on against any demand for manual intervention to the welding process of the machine. The machine is controlled by the TECO high-performance PLC and 10.2-inch man-machine touch screen and its offsetting is controlled by synchronous lifting trolley to ensure the accuracy of welding process. Moreover, the machine rotates the pipes by synchronous roller drive, which maximizes the synchronization coefficient between the rotary drive machine and the pipe.


    2. Machine Parameter

    Diameter Range of Overlay WeldingΦ120-1000mm
    Maximum Overlay Welding Length6000 mm
    Overlay Welding Speed0-250mm /min
    Overlay Welding Thickness3-6mm
    Allowable Weight2.0T
    Maximum Power28.5Kw
    Water Cooling Control SystemVariable frequency circulating water cooling
    Control SystemThe control system adopts Variable frequency + digital system control
    Idle Travel Speed0-7000mm/min
    Allowable Material for Overlay WeldingQ235 Q345
    Elevation of Overlay Welding Torch0-100mm
    Elevating Mode of Overlay Welding TorchManual mechanical lifting
    Precision Standard of Whole MachineConforming to JB/T5102-1999
    Linear Positioning Accuracy±1mm/5m
    Velocity Error±2%

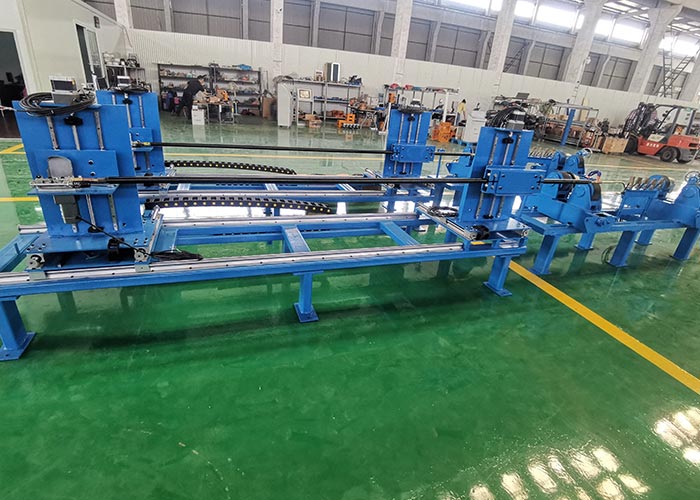

    3. Pictures


    Quality 6mm 28.5Kw 6000mm Pipe Hardfacing Welding Machine for sale
