    60HZ 600kgs 0.55kw Vertical Weld Overlay Hardfacing Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-350R
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+Per Month
    Delivery Time : 15-60 Days
    • Product Details
    • Company Profile

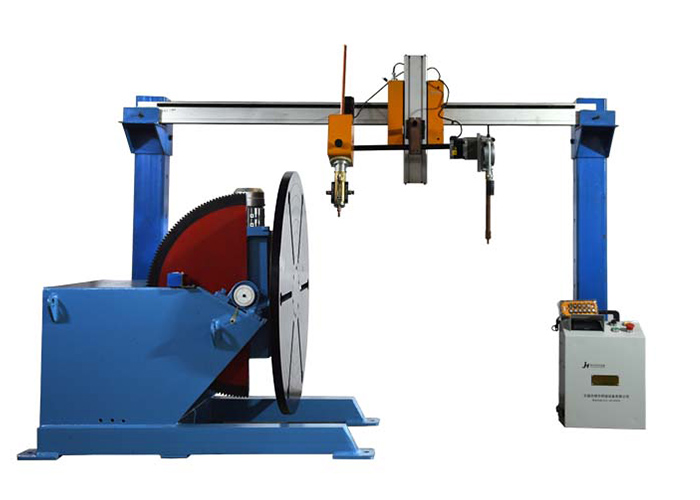

    60HZ 600kgs 0.55kw Vertical Weld Overlay Hardfacing Machine

    Automatic Hardfacing System, Weld Overlay Hardfacing Machine, Vertical Weld Overlay Hardfacing


    1. Product Instruction

    The auto cladder is generally composed of a table turning mechanism and a turning mechanism. Through the lifting, turning and turning of the table, the workpiece fixed on the table can reach the required welding and assembly angle. The table turning is variable frequency stepless speed regulation, which can obtain satisfactory welding speed.
    Because of the eccentricity and center of gravity distance, the larger model should be selected for the workpiece with longer workpiece and more center of gravity position deviation. The standard cladder can not meet all the workpieces. Please provide the shape and weight of the workpieces to be processed and the processing technology when selecting. The company will provide a suitable scheme for reference.


    2. Specification

    ModelJH150JH250JH350JH450JH550
    Max loading KGs1003006001,2002,000
    Rated eccentricity mm100150150200250
    Rated center of gravity mm150200250250300
    Worktable diameter mmΦ400Φ600Φ800Φ1000Φ1200
    Tilt angleMAX 120°MAX 120°MAX 120°MAX 120°MAX 120°
    Rotation speed rpm0.1—10.1—10.1—10.1—10.09—0.9
    Tilt speed rpm20.90.80.50.4
    Rotation motor power KW0.060.370.370.751.1
    Tilt motor power KW0.180.370.551.11.5
    Max rotation diameter of work-piece in 90° mm6001000150015701900
    Earthing Amperes A10001000100010001000
    Main frame length mm740930120014001700
    Main frame height mm42070090010001200
    Main frame width mm52782080010001200

    3. Delivery
