Brand Name : | JINGHUA |
Model Number : | ZX5-630 |
Price : | USD+5000-50000+Unit |
Payment Terms : | T/T |
Supply Ability : | 30+Unit+per Month |
Delivery Time : | 15-30 Days |
Instruction
· IGBT Tehnology
· Excellent TIG weld characteristics
· Generator compatible, idea for site use
· Peak current control mode, reliable quality and efficiency
· High speed pulse to adjust the arc focus, reduce distortion and
increase travel speed
· Pre-set digital meter with hold function for fully procedured work
· Thrust function is added, transition performance of melt drip can
be improved during welding
· Full power even in the case of voltage fluctuation and when using
long cables
· Easy operation, one knob adjust
Specification

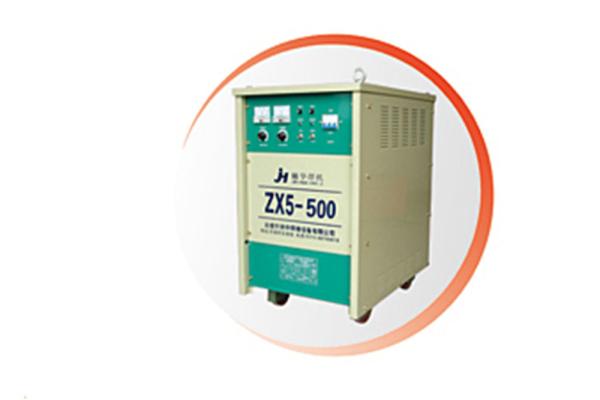

Description | ZX5-400 | ZX5-500 | ZX5-630 |
Input Voltage (V) | Three Phase AC380 | Three Phase AC380 | Three Phase AC380 |
Rated Input Capacity (KVA) | 23 | 30 | 47 |
Input Frequency (Hz) | 50/60 | 50/60 | 50/60 |
Output Current Range (A) | 40-400 | 50-500 | 60-630 |
Output Voltage (V) | 63 | 63 | 72 |
Rated Duty Cycle (%) | 60 | 60 | 60 |
Weight (KG) | 160 | 200 | 280 |
Dimension (mm) | 779×450×779 | 810×480×860 | 810×480×860 |
![]() |
