    5MPa 5000mm Automatic Welding Machine For Hydraulic Cylinder

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-WR500
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+Per Month
    Delivery Time : 15-60 days
    Certification : ISO900
    • Product Details
    • Company Profile

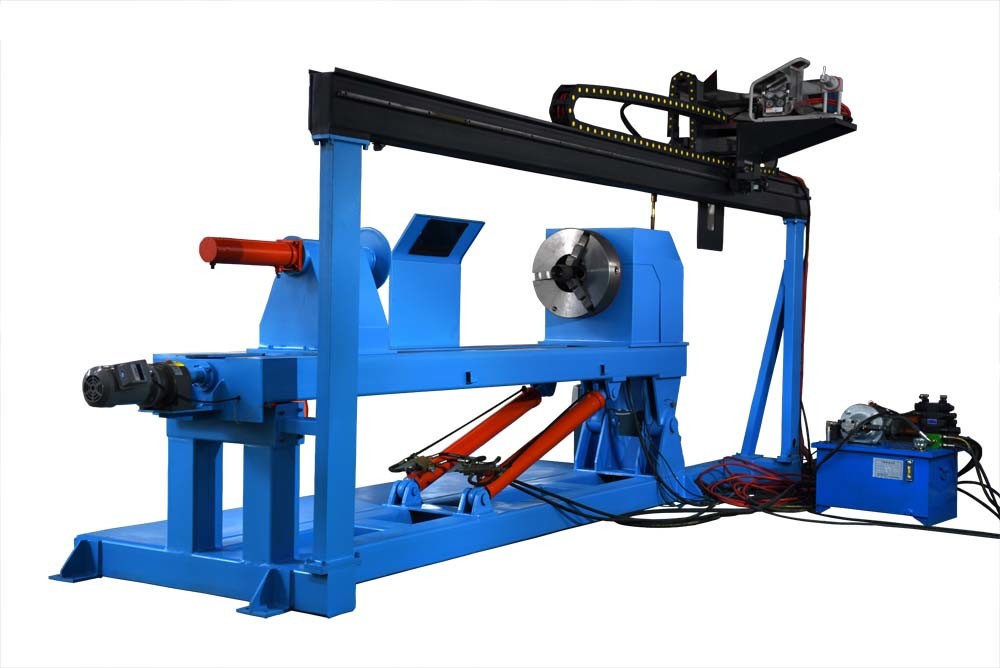

    5MPa 5000mm Automatic Welding Machine For Hydraulic Cylinder

    External Cylinder Seam Welding Machine For Hydraulic Cylinder


    I. Machine Instruction

    JH-WR500 is mainly used for the automatic welding of end caps, flanges, lifting lugs and piston rods of heavy-duty hydraulic cylinders. The welding process can be completed by butt welding the cylinder end cover and the hydraulic cylinder flange once.

    Workpiece Loading & Unloading Method: Manual

    Locating Method of The Workpiece: Self-centering chuck in the left clamp the workpiece to locate the center of rotation by manual. Two supporting racks locate the center of the workpiece and rotate together with the workpiece coaxially. Pneumatic tailstock is equipped in the right end, the centre of the tailstock sustain the workpiece gyration.
    Methods For Welding: Single torch gas shielded arc welding, automatic single-layer welding or multi-layer welding can be achieved once. Single-layer & single-pass welding, multi-layer & single-pass welding, multi-layer & multi-pass welding can be achieved full automatically.
    The one end of the workpiece must be clamped and another end has an inner bore. The outer diameter can be supported by the contact rollers to locate the centre of the workpiece. (can weld workpiece while only the chuck clamp it directly or the chuck clamp it and the tailstock press it or the chuck clamp it and the contact rollers support it)


    2. Supply Ability
    1 Set per Month


    3. Packaging Details

    The external cylinder seam welding machine of the hydraulic cylinder tube is exported and packaged in a wooden box, and the body is covered with a transparent plastic film.


    4. Product Description
    Condition:
    New
    Wall thickness range:
    10mm ~ 35mm
    Place of Origin:
    WuXi, China (Mainland)
    Oil pressure adjustment range:
    0.5-5MPa.
    Inner diameter range:
    φ101.6mm~φ290mm
    Dimensions:
    Customized
    Outer diameter range:
    120mm ~ 450mm
    Weight:
    Customized
