    2500Kgs 800mm Pipe Cladding Machine For Wear Resistance Tube

    Automatic Hardfacing Machine for Wear Resistance Tube, Automaitc Overlay Welding Machine for Wear Resistance Pipe


    1. Machine Introduction

    90-Degree Elbow Cladding is a process of weld overlay of stainless steel inside 90-degree pipe elbow. JINHUA offers an unique system for 90-degree elbow cladding with Hot Wire TIG using a patented sector-wise cladding forconsistent quality and high productivity.


    A STAINLESS-STEEL-CLAD metal or alloy is a composite product consisting of a thin layer of stainless steel in the form of a veneer integrally bonded to one or both surfaces of the substrate. The principal object of such a product is to com-bine, at low cost, the desirable properties of the stainless steel and the backing material for applications where full-gage alloy construction is notrequired. While the stainless cladding furnishes the necessary resistance to corrosion, abrasion, or oxidation, the backing material contributes structural strength and improves the fabricability and thermal conductivity of the composite. Stainless-steel-clad metals can be produced in plate, strip, tube, rod, and wire form.


    2. Machine Parameter


    Bend angle of the pipe90 Deg
    Inner diameter range174 ~ 800 mm
    (160 mm after cladding)
    Bending radius range450 ~ 1000 mm
    Maximum job weight2500 Kgs
    Mains supply380±10%V AC, 3Ph, 50Hz
    Ambient temperature-5 to +45 Degree
    Relative humidity20 ~ 90%
    Flammable GasNONE
    Corrosive GasNONE
    Shielding gasAIr (purity ~ 99.99%
    Work siteIndoor

    Diameter Range of Overlay WeldingΦ150-3000mm
    Maximum Overlay Welding Length6000 mm
    Overlay Welding Speed0-250mm /min
    Overlay Welding Thickness3-6mm
    Allowable Weight2.0T
    Maximum Power28.5Kw
    Water Cooling Control SystemVariable frequency circulating water cooling
    Control SystemThe control system adopts Variable frequency + digital system control
    Idle Travel Speed0-7000mm/min
    Allowable Material for Overlay WeldingQ235 Q345
    Elevation of Overlay Welding Torch0-100mm
    Elevating Mode of Overlay Welding TorchManual mechanical lifting
    Precision Standard of Whole MachineConforming to JB/T5102-1999
    Linear Positioning Accuracy±1mm/5m
    Velocity Error±2%

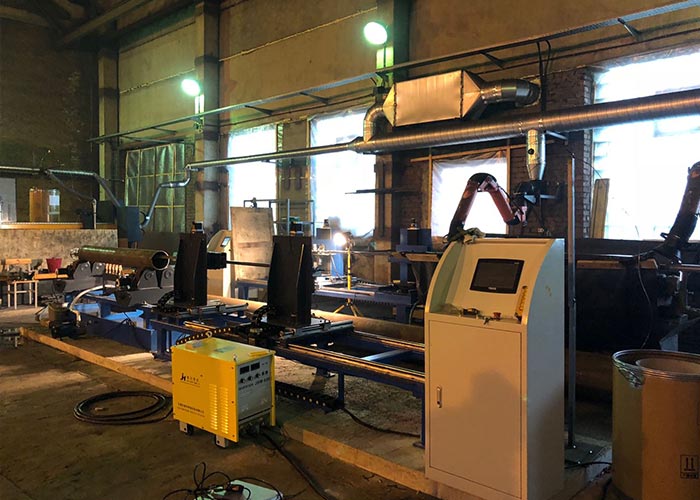

    3. Pictures
