    1250A Roll Surfacing Equipment

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-6000DEG
    Price : USD+5000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+per Month
    Delivery Time : 15-60 days
    • Product Details
    • Company Profile

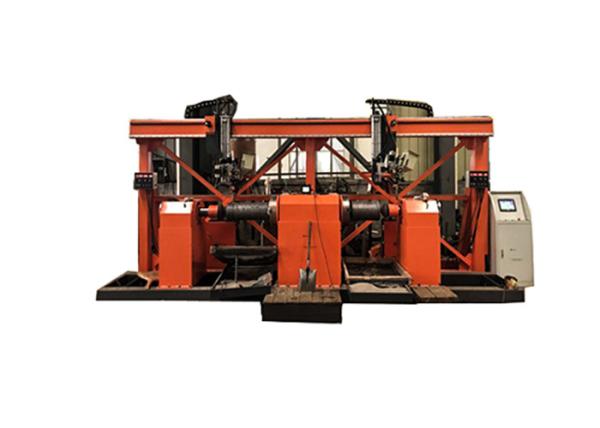

    1250A Roll Surfacing Equipment

    Continuous Casting Roll Surfacing Equipment JH-6000DEG Roll Surfacing Machine


    Product Description

    1, with bright arc surfacing , swing surfacing, submerged arc surfacing and other functions.
    2, the arc welding memory function of the surfacing process , self-stabilization of the gun head, automatic control of arc voltage and other corresponding functions .
    3, wire feed welding process is stable, a large moment force feeding wire for high-speed welding surfacing and swing, increase penetration and deposition efficiency.
    4, During the swing surfacing process, the electromagnetic and mechanical agitation of the arc to the molten pool is enhanced, so that the weld structure becomes more reasonable and uniform, and the weld bead is more flat.
    5, All process parameters in the welding process, including current, voltage, wire feeding speed , walking speed, walking distance, bead width, welding time, etc. are automatically controlled.
    6, The machine control system adopts the Chinese (English) touch screen man-machine dialogue data , which can set the moving speed, swing speed, swing width, welding speed, rotation speed, continuous casting roller length, etc. to realize automatic control.


    Product Parameters
    1
    model:
    JH-6000DEG
    2
    Maximum loading distance:
    1200mm
    3
    Maximum card diameter:
    Φ400mm
    4
    Maximum card weight:
    1500kg
    5
    Welding swing width:
    H(mm)6, 5-50mm
    6
    Welding swing speed:
    0.1-3.5M/min
    7
    Roll rotation speed:
    0.05-0.3r/min
    8
    Floor area:
    L7000*W2300
    9
    Voltage:
    0-45V
    10
    Current:
    1250A
