    9999mm Min 8 Foot Turntable H Frame Weld Cladding Equipment

    Ask Lasest Price
    Brand Name : JINGHUA
    Model Number : JH-170
    Price : USD+5000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+per Month
    Delivery Time : 15-30 Days
    Certification : ISO900
    • Product Details
    • Company Profile

    9999mm Min 8 Foot Turntable H Frame Weld Cladding Equipment

    H Frame Automatic Cladding Machine, H Frame Weld Cladder, Weld Overlay Cladding System


    1. Production Description

    The system is controlled by the new high performance series PLC from Taiwan TECO AP, together with the man-machine interaction 4.3 inch TECO true color touch screen + wireless handheld control terminal with touch screen, of which the wire feeding adopts high-precision DC motor design with a control box of the machine conforming to ergonomics for an intuitive operation and elegant and beautiful appearance. The connection of machine and control box is installed by plug-in design, while other electrical components are assembled with imported electrical components (Mainly from Schneider), which improves the durability of welding machine significantly.


    2. Specification

    ModelJH-170
    Weld ProcessHotwire TIG
    ManipulatorHeavy-duty motorized cross-slides
    Turntable8 foot diameter table, 15 ton capacity with slip ring
    Standard Power SourceMiller Maxstar 700 with Coolmate 3.5 cooler, Maxstar 200 DX
    Optional Power SourceOther power sources are available
    Maximum Height Bore DepthUp to 78.7 in (2000 mm) depending on torch type and vertical slides used
    Minimum Weldable Bore1.77 in (45 mm) diameter
    Water Cooled TIG TorchVarious fixed and adjustable-angle torch heads available
    Welding Speed7.87 in/min to 17.7 in/min (20 to 45 cm/min)
    Air PressureRequires 3-4 bar / 45-60 psi
    ControlKEY 1250 PLC Controller
    Control FunctionsControlled by 15 in TFT HMI or remote pendant
    Input Power RDA VCS 700VCS (controller, manipulator, turntable) - 380 to 480 V, 3 phase, 50/60 Hz
    Input Power Miller Power SourcesMaxstar 700 and Maxstar 200DX - 380 to 480 V, 3 phase, 50/60 Hz
    Input Power Miller CoolerCoolmate 3.5 - 115 VAC 50/60 Hz (from power source)
    Overall Height216.5 in (5500 mm)
    Shipping Weight21,054 lb (9550 kg) complete system

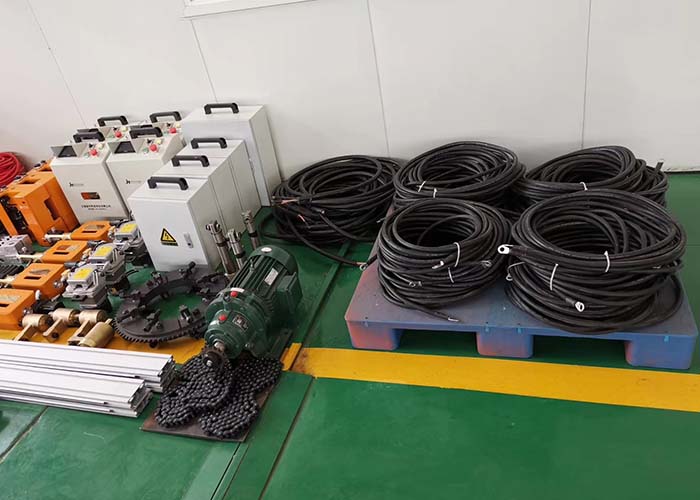

    3. Pictures



    Quality 9999mm Min 8 Foot Turntable H Frame Weld Cladding Equipment for sale
