    ISO9001 9800mm Min 20mm Table Overlay Welding Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-800
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 50+unit+per m50+unit+per month
    Delivery Time : 15-60 days
    Certification : ISO9001
    • Product Details
    • Company Profile

    ISO9001 9800mm Min 20mm Table Overlay Welding Machine

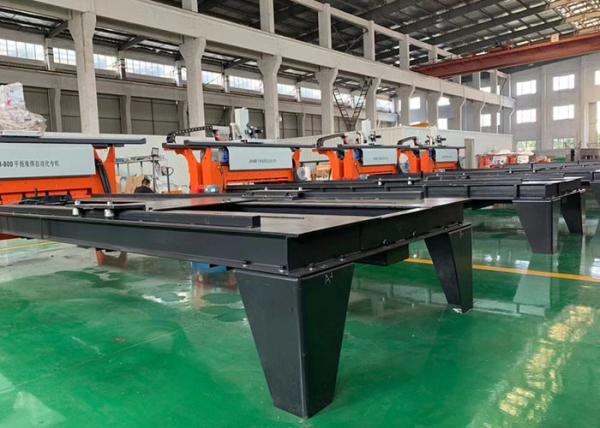

    JH-800 Table Type Overlay Welding Automatic Machine


    Product Description

    The JH-800 Table Type Overlay Welding Automatic Machine is a new generation of the table type overlay welding machine developed by our company, which is functioned by the high performance PLC + digital system for its control system, the TECO servo precision system control for its pallet displacement, the latest TECO JSPD servo system control technology for its wire control, the horizontal double driving guides + code mode of feed control for its ejector plate feeding displacement of parent metals, and the SAMSR driver + OPG motor control for its powder dropping in which the precision of wire feeding and powder dropping is enabled within 1.0g.


    Direction for use
    The hydraulic pressure of the system adopts the analog quantity to control its automatic pressure circulation of setting values to improve the pressure control accuracy up to an range of 0.15%, which controls the welding torch within compound swing of
    10-48mm for welding, and cools the welding torch head by circulating cooling water constant pressure cooling while cooling the
    parent metals by variable frequency water pressure circulating, avoiding the deformation of the base metal due to the overheat in
    the welding process.
    Product Paramenters
    Welding Width
    1560mm
    Welding Length
    3100mm
    Idle Travel Speed
    0-9800mm/min
    Allowable Material for Overlay Welding
    Q235 Q345 Mild Steel Plate
    Wear Layer Overlay Welding Thickness
    2-20mm
    Wear Layer Overlay Welding Speed
    100-300 mm/min
    Elevation of Overlay Welding Torch
    0-80mm
    Lift Mode of Overlay Welding Torch
    Manual Mechanical Adjustment
    Precision Standard of Whole Machine
    /Conforming to JB/T5102-2005
    Linear Positioning Accuracy
    1mm/5m
    Velocity Error
    0.5%

    ISO9001 9800mm Min 20mm Table Overlay Welding MachineISO9001 9800mm Min 20mm Table Overlay Welding MachineISO9001 9800mm Min 20mm Table Overlay Welding Machine
