    Q345 steel 1000Mm 28.5Kw In Wall Pipe Welding Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-380
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Units+Per Month
    Delivery Time : 15-60 days
    • Product Details
    • Company Profile

    Q345 steel 1000Mm 28.5Kw In Wall Pipe Welding Machine

    Tube Cladding Machine, Tube Inner Hardfacing Machine, Tube Inner Surface Overlay Welding Machine


    1. Machine Introduction

    JH-380 Inwall Pipe Automatic Welding Machine is a new generation of the automatic overlay weldingmachine developed by our company, which is featured with a high level of automation, designs conforming to the manual machine operation and simple operation.


    2. Direction for use

    JH-380 is functioned by the welding parameter memory storage, wireless remote control, automatic location finding, circulating
    water cooling control with variable frequency, abnormal information alarm and so on against any demand for manual intervention to the welding process of the machine.


    3. Product Paramenters

    Diameter Range of Overlay Welding
    120-1000 mm
    Maximum Overlay Welding Length
    6000 mm Operation of turning the pipe around and overlay welding are required
    Overlay Welding Speed
    0-250mm /min
    Overlay Welding Thickness
    3-6mm Monolayer
    Allowable Weight
    2.0T
    Maximum Power
    28.5Kw
    Water Cooling Control System
    Variable frequency circulating water cooling
    Control System
    The control system adopts Variable frequency + digital system control
    Idle Travel Speed
    0-7000mm/min
    Allowable Material for Overlay Welding
    Q235 Q345 Mild steel
    Elevation of Overlay Welding Torch
    0-100mm
    Elevating Mode of Overlay Welding Torch
    Manual mechanical lifting
    Precision Standard of Whole Machine
    Conforming to JB/T5102-1999
    Linear Positioning Accuracy
    1mm/5m
    Velocity Error
    2%

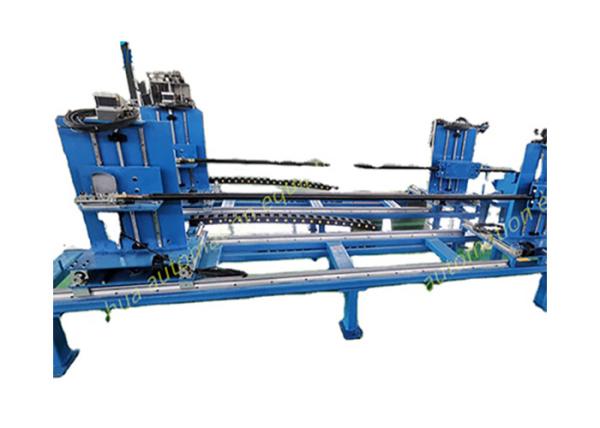

    4. Pictures

    Q345 steel 1000Mm 28.5Kw In Wall Pipe Welding Machine
