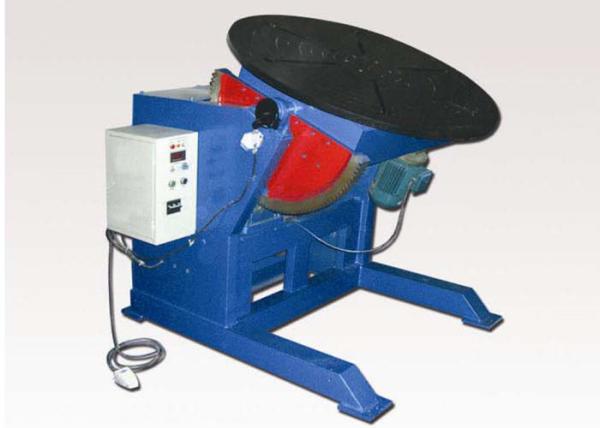

    Benchtop 300kg 200mm 4 rpm Rotating Welding Positioner

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JHC200
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+Per Month
    Delivery Time : 15-60 Days
    • Product Details
    • Company Profile

    Benchtop 300kg 200mm 4 rpm Rotating Welding Positioner

    Welding Positioner, Automatic Welding Position System, Automatic Welding System


    I. Machine Instruction

    Welding positioner is mainly composed of worktable revolving unit and tilting unit. By means of worktable elevation, workpiece fixed on the worktable can be placed to ideal position for welding and assembly. Speed of worktable revolving is controlled invariably and continuously with inverter, attaining satisfactory welding speed.

    For the reason of eccentric distance and gravity center distance, slightly higher model should be selected for longer workpiece and workpiece of which gravity center has greater offset. If standard welding positioned can not meet requirement for all workingpieces, be sure to offer us shave, weight and machining technology of workpiece, so we can furnish suitable proposal for your choice.


    II. Main Technical Parameters

    TypeRated Loading (Kg)Rotation Speed (rpm)Tilting Speed (rpm)Tilting Angle (Degree)Worktable Dia (mm)Rotation Power (kw)Tilting Power (kw)Speed RegulationMax. Eccentricity (mm)Max. Gravity (mm)
    JHBW-011000.4-4Manual0-90Φ 4000.18/AC Frequency Conversion Stepless Speed Regulation100200
    JHBW-033000.1-1Manual0-90Φ 6000.18/150200
    JHBW-033000.1-110-90Φ 6000.180.18150200
    JHBW-066000.09-0.90.420-90Φ 10000.750.75150200
    JHBW-1212000.05-0.50.40-120Φ 12001.11.1200250
    JHBW-3030000.05-0.50.230-135Φ 14001.12.2200300
    JHBW-5050000.05-0.50.20-135Φ 15001.53200300
    JHBW-100100000.05-0.50.20-135Φ 200034200400
    JHBW-150150000.04-0.40.150-135Φ 220047.5200500
    JHBW-200200000.04-0.40.15-45 - 90Φ 25005.511200600
    JHBW-300300000.03-0.30.15-45 - 90Φ 30005.515200650
    JHBW-500500000.02-0.20.06-45 - 90Φ 40001118.5200800
