    500A Automatic Welding Machine

    Customized Automatic Welding Machine For Hydraulic Cylinder


    I. Machine Instruction

    Workpiece Loading & Unloading Method: Manual

    Locating Method of The Workpiece: Self-centering chuck in the left clamp the workpiece to locate the center of rotation by manual. Two supporting racks locate the center of the workpiece and rotate together with the workpiece coaxially. Pneumatic tailstock is equipped in the right end, the centre of the tailstock sustain the workpiece gyration.
    Methods For Welding: Single torch gas shielded arc welding, automatic single-layer welding or multi-layer welding can be achieved once. Single-layer & single-pass welding, multi-layer & single-pass welding, multi-layer & multi-pass welding can be achieved full automatically.
    The one end of the workpiece must be clamped and another end has an inner bore. The outer diameter can be supported by the contact rollers to locate the centre of the workpiece. (can weld workpiece while only the chuck clamp it directly or the chuck clamp it and the tailstock press it or the chuck clamp it and the contact rollers support it)


    II. Main Technical Parameters

    Model NameHF4000
    Rated Load Capacity3T
    Workpiece Length Range≤3000mm
    Workpiece Diameter Rangeφ50-φ500mm
    Rotating Speed of The Main Spindle0.19-2.2r/min
    Elevating Stroke of The Torch300mm
    Manual Adjusting Range of The TorchX:≥50mm Y:≥50mm
    Turnover Angle of The Workpiece360°
    Pressure of The Compressed Air0.3~0.6MPa
    Rated Welding Current500A
    Welding Centre Height950mm

    III. Main Components List

    DiscriptionManufacturer
    PLCMitsubishi
    Touch ScreenMitsubishi
    Electrical ElementSchneider / Siemens
    Pneumatic ElementAirTAC, Taiwan
    Linear Guide RailHIWIN, Taiwan
    InverterTaian, Taiwan
    Main Spindle ReducerTongli, China
    Stepping MotorMitsubishi
    Movement ReducerTongli, China
    Oscillator MotorMitsubishi


    IV. Pictures

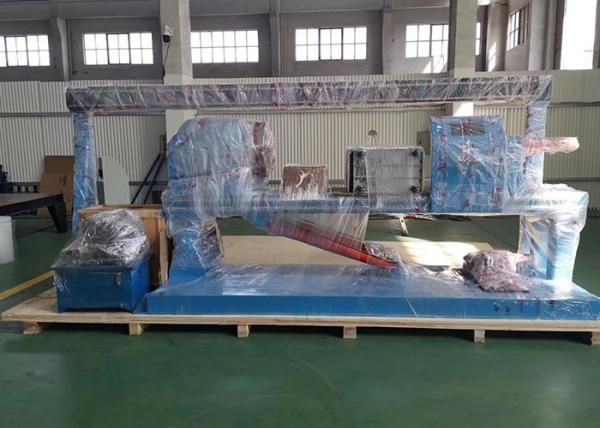

    Quality 500A Automatic Welding Machine for sale
