    Alloy Steel 60HZ 2000mm Min Gantry Welding Manipulator

    Ask Lasest Price
    Brand Name : JINGHUA
    Model Number : JH-210S
    Price : USD+5000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Unit+per Month
    Delivery Time : 15-30 Days
    • Product Details
    • Company Profile

    Alloy Steel 60HZ 2000mm Min Gantry Welding Manipulator


    1. Production Description

    This machine is mid-range chain lift manipulators can be customized for specific applications, such as simple straight-line to circumferential welding. The Ram ends can be outfitted with small I.D. single or multiple arc welding heads for long seam and circumferential welding procedures. We have custom designs that can handle extra heavy, and extra long reach applications.
    All manipulators come standard as a pedestal mount, and with a manual mast rotation, the option of powered rotation, self standing
    bases, and manual or powered travel cars. Complete welding packages can be JINHUA supplied and JINHUA mounted, customersupplied and JINHUA Mounted, or customer supplied and mounted. Self-standing bases, travel cars, and welding equipment packages are just some of the options available.


    2. Specification

    TypeLight DutyMedium DutyHeavy DutySuper Heavy
    The rectangular guiding rail wktth of column and boom(mm)25356075
    Lifting stroke(m)1-32-52-82-13
    Retracting stroke(m)1-3.52-52-84-12
    Liftng speed(mm/min)450600800800

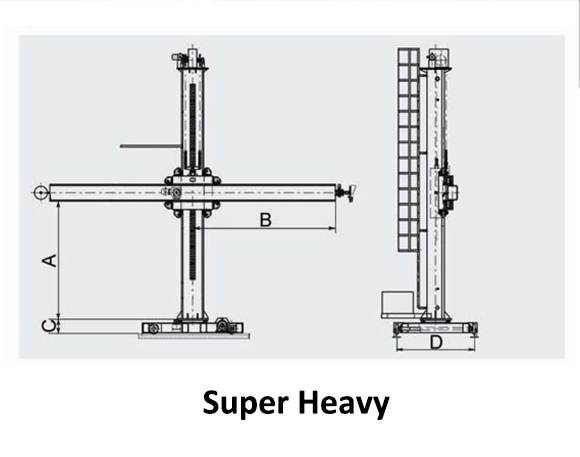

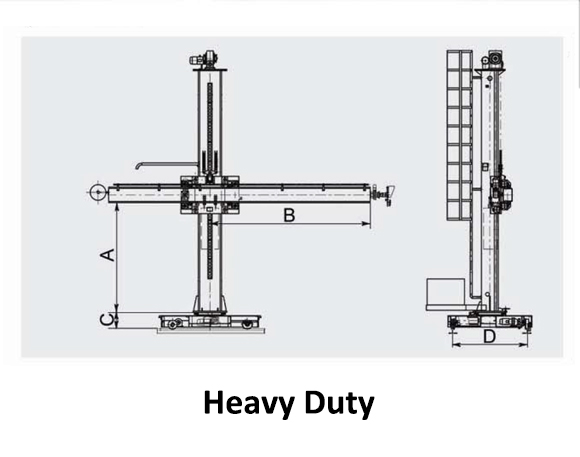

    Min. height under boom(A) mm)300400450600
    Min. distance from cdumn center to the front end of the boom(B) (mm)500100010001000
    Retracting speed{mm/min>100-1500100-1500100-1500100-1500
    Angle (Degree)±180土 180土 180土 180
    Speed(rpm)By manualBy manualBy manualBy manual
    Trolley traveling speeding(mm/min)Traveling by manual200020001000
    Height of trolley(C) (mm)300440440440
    Span of trolley rain(D) (mm)1200150020002500
