1200mm 750A 0.3r min Mills Roller Hardfacing Machine

    Buy cheap 1200mm 750A 0.3r min Mills Roller Hardfacing Machine from wholesalers

    Buy cheap 1200mm 750A 0.3r min Mills Roller Hardfacing Machine from wholesalers
    • Buy cheap 1200mm 750A 0.3r min Mills Roller Hardfacing Machine from wholesalers

    1200mm 750A 0.3r min Mills Roller Hardfacing Machine

    Ask Lasest Price
    Brand Name : JINHUA
    Model Number : JH-6000DEG
    Price : USD+2000-50000+Unit
    Payment Terms : T/T
    Supply Ability : 30+Units+Per Month
    Delivery Time : 15-60 Days
    • Product Details
    • Company Profile

    1200mm 750A 0.3r min Mills Roller Hardfacing Machine

    Mills Roller Automatic Hardfacing Machine, Mills Roller Surfacing Overlay Welding Machine


    1. Introduction

    The electromagnetic and mechanical stirring effect of arc on the molten pool is strengthened in the swing surfacing process, which makes the weld structure more reasonable and uniform and the weld bead more smooth. All process parameters, including current, voltage, wire feeding speed, walking speed, walking distance, bead width and welding time, are automatically controlled.

    JH-5000DEG has the functions of open-arc surfacing, swing surfacing and submerged-arc surfacing. The function of ARC-BREAKING memory, self-stabilization of gun head and automatic control of arc pressure in surfacing process. Stable wire feeding and large wire feeding moment during surfacing process can realize high-speed surfacing and swing surfacing, increase penetration and deposit efficiency.

    The machine tool control system uses Chinese (English) touch screen man-machine conversation data. It can set the moving speed, swing speed, swing width, welding speed, rotating speed and the length of continuous casting roll to realize automatic control.


    2. Technical Parameter

    Maximum clamping length1200mm
    Maximum loading diameter400mm
    Maximum load1500kg
    Welding swing width5-80mm
    Welding swing speed0.1-3.5M/min
    Rotation speed0.05-0.3r/min
    Welding voltage0-45V
    Welding Current300-750A

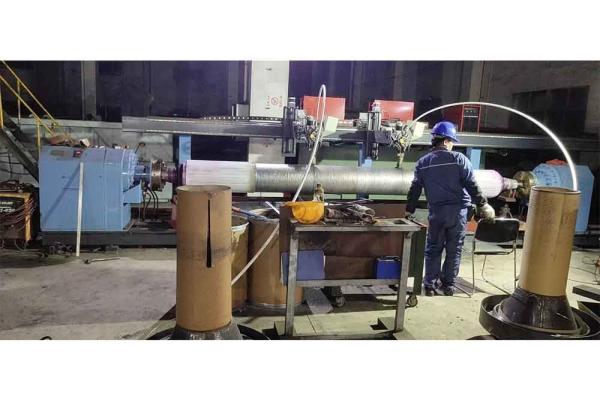

    3. Pictures



    Quality 1200mm 750A 0.3r min Mills Roller Hardfacing Machine for sale
